PANDUIT P10-14R-L Pan-Term® Non-Insulated Ring Terminal Loose Piece Ring Terminal 14-10 AWG 1/4 in Stud size
pccp10-14r-l
PANDUIT P10-14R-L Pan-Term® Non-Insulated Ring Terminal Loose Piece Ring Terminal 14-10 AWG 1/4 in Stud size
Manufacturer:PANDUIT
Manufacturer #:P10-14R-L
Description

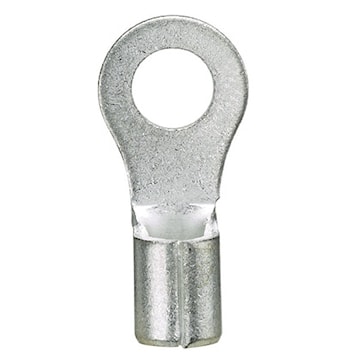

The P10-14R-L Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Item Name | Non-Insulated Ring Terminal | Type | Ring Terminal |
| Conductor Size | 14-10 AWG | Stud Size | 1/4 in |
| Voltage Rating | 2000 V | Material | Copper |
| Finish | Tin Plated | Color | Silver |
| Barrel Type | Beveled | Tang Type | Ring |
| Barrel Length | 0.35 in | Barrel Configuration | Standard |
| Temperature Rating | 302 °F | Width | 0.52 in |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 | UPC | 074983802340 |
Packages
| 100 - rarr_unit_1 | 500 - rarr_unit_3 |
