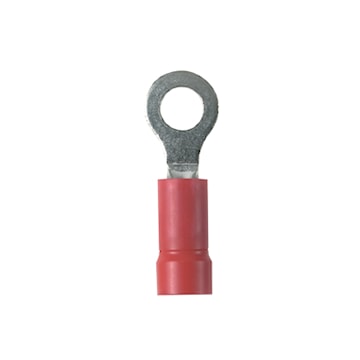

PANDUIT PV18-10R-CY Pan-Term® Insulated Ring Terminal Loose-Piece 22-18 AWG #5, #10 Stud size
pccpv18-10r-cy
PANDUIT PV18-10R-CY Pan-Term® Insulated Ring Terminal Loose-Piece 22-18 AWG #5, #10 Stud size
Manufacturer:PANDUIT
Manufacturer #:PV18-10R-CY
Description
The PV18-10R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Term® |
| Item Name | Insulated Ring Terminal | Type | Loose-Piece |
| Conductor Size | 22-18 AWG | Stud Size | #5, #10 |
| Voltage Rating | 600 V | Insulation Material | PVC |
| Material | Copper | Finish | Tin Plated |
| Color | Red | Barrel Type | Funnel |
| Tang Type | Ring | Barrel Length | 0.39 in |
| Barrel Configuration | Funnel Entry | Temperature Rating | 221 °F |
| Width | 7.9 mm | Standards | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983688500 |
Packages
| 50 - rarr_unit_1 | 500 - rarr_unit_2 |
