pccedv18-250b-l

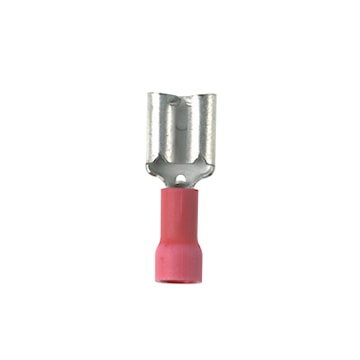

PANDUIT EDV18-250B-L StrongHold™ Insulated Female Disconnect Terminal NA 22-18 AWG Copper
pccedv18-250b-l
PANDUIT EDV18-250B-L StrongHold™ Insulated Female Disconnect Terminal NA 22-18 AWG Copper
Manufacturer:PANDUIT
Manufacturer #:EDV18-250B-L
Description
StrongHold™ Female Disconnect, vinyl barrel insulated, 22 - 18 AWG, .250 x .032 tab size.
Specifications
| Brand Name | Panduit | Sub Brand | StrongHold™ |
| Item Name | Insulated Female Disconnect Terminal | Type | Disconnect |
| Conductor Size | 22-18 AWG | Tab Size | 1/4 in |
| Width | 0.29 in | Voltage Rating | 600 V |
| Insulation Material | Vinyl | Material | Copper |
| Finish | Tin Plated | Length | 0.81 in |
| Insulation Diameter | 0.15 in | Color | Red |
| Barrel Type | Butted Seam | Temperature Rating | 105 °C |
| For Use With | CT-520, CT-1525, CT-520, CT-1525 Crimp Tool | Standards | cULus, E78522 |
| UPC | 074983280131 |
