pccpcsb2/0-3s-6y

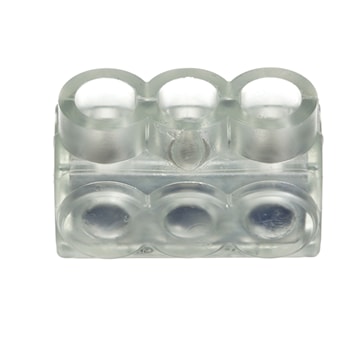

PANDUIT PCSB2/0-3S-6Y Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 3 Ports 2/0-14 AWG Stranded Aluminum, PVC Insulation
pccpcsb2/0-3s-6y
PANDUIT PCSB2/0-3S-6Y Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 3 Ports 2/0-14 AWG Stranded Aluminum, PVC Insulation
Manufacturer:PANDUIT
Manufacturer #:PCSB2/0-3S-6Y
Description
The PCSB2/0-3S-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Multi-Tap Connector | Type | Mechanical, Single-Sided |
| Voltage Rating | 600 V | Number of Ports | 3 |
| Conductor Size | 2/0-14 AWG Stranded | Material | Aluminum, PVC Insulation |
| Color/Finish | Clear | Temperature Rating | 90 °C |
| Standards | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C | Application | Aluminum or Copper Code Conductors |
| UPC | 074983596430 |
