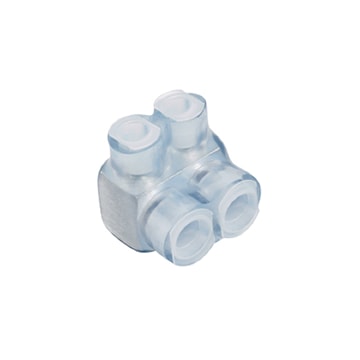

PANDUIT PCSB250-2S-6Y Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 2 Ports 250 kcmil - 10 AWG Stranded Aluminum or Copper Aluminum, PVC Insulation
pccpcsb250-2s-6y
PANDUIT PCSB250-2S-6Y Pan-Lug™ Multi-Tap Connector Mechanical, Single-Sided 2 Ports 250 kcmil - 10 AWG Stranded Aluminum or Copper Aluminum, PVC Insulation
Manufacturer:PANDUIT
Manufacturer #:PCSB250-2S-6Y
Description
The PCSB250-2S-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Multi-Tap Connector | Type | Mechanical, Single-Sided |
| Voltage Rating | 600 V | Number of Ports | 2 |
| Conductor Size | 250 kcmil - 10 AWG Stranded Aluminum or Copper | Material | Aluminum, PVC Insulation |
| Color/Finish | Clear | Conductor Type | Aluminum/Copper |
| Temperature Rating | 90 °C | For Use With | Aluminum and Copper Conductors |
| Standards | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C | Application | Aluminum or Copper Code Conductors |
| UPC | 074983596607 |
Packages
| 1 - rarr_unit_1 | 6 - rarr_unit_2 | 100 - rarr_unit_3 |
