pcclcd6-38d-l

PANDUIT LCD6-38D-L LUG

Manufacturer:PANDUIT
Manufacturer #:LCD6-38D-L
Documents Documents

Description

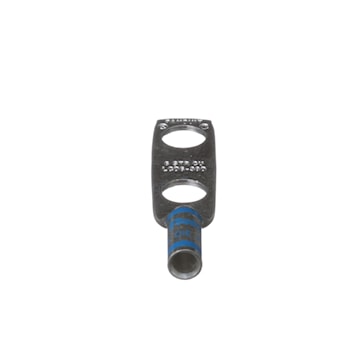

Two-hole, standard barrel lug with window, #6 AWG wire, 3/8 stud hole, 1 hole spacing.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name 2-Hole Compression Lug Type Type LCD
Conductor Size 6 AWG Number of Holes 2
Stud Size 3/8 in Barrel Length 0.81 in
Tongue Size 0.62 in W x 0.06 in T Overall Length 2.83 in
Color Code Blue Material Copper
Voltage Rating 35000 V Barrel Type Standard with Inspection Window, Straight
Tongue Type Standard Stud Hole Spacing 1 in
Finish Tin Plated Mounting Type Hole
Standards California Proposition 65 Warning UPC 074983383139

Packages

1 - rarr_unit_1 50 - rarr_unit_2 100 - rarr_unit_3
