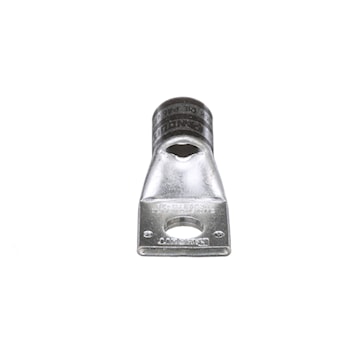

PANDUIT LCB2/0-38-X Pan-Lug™ Compression Lug 1 Holes Copper 0.375 in Stud size
pcclcb2/0-38-x
PANDUIT LCB2/0-38-X Pan-Lug™ Compression Lug 1 Holes Copper 0.375 in Stud size
Manufacturer:PANDUIT
Manufacturer #:LCB2/0-38-X
Description
The LCB2/0-38-X Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Type LCB |
| Number of Holes | 1 | Stud Size | 0.375 in |
| Barrel Length | 1.5 in | Overall Length | 2.82 in |
| Color Code | Black | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long |
| Tongue Type | Standard | Finish | Tin Plated |
| Standards | C22.2 No. 65-13, UL 486A-486B File No. E52164 | UPC | 074983901302 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 100 - rarr_unit_3 |
