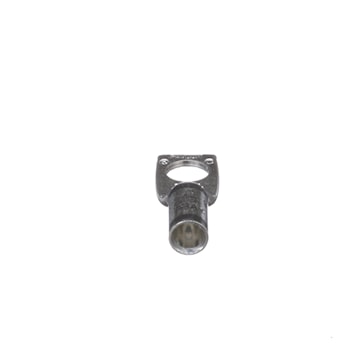

PANDUIT LCA4-38-L Pan-Lug™ Compression Lug 1 Holes Copper 0.375 in Stud size
pcclca4-38-l
PANDUIT LCA4-38-L Pan-Lug™ Compression Lug 1 Holes Copper 0.375 in Stud size
Manufacturer:PANDUIT
Manufacturer #:LCA4-38-L
Description
The LCA4-38-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Item Name | Compression Lug | Type | Type LCA |
| Number of Holes | 1 | Stud Size | 0.375 in |
| Barrel Length | 0.81 in | Overall Length | 1.85 in |
| Color Code | Gray | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Standard |
| Tongue Type | Standard | Finish | Tin Plated |
| Standards | C22.2 No. 65-13, UL 486A-486B File No. E52164 | UPC | 074983900138 |
Packages
| 1 - rarr_unit_1 | 50 - rarr_unit_2 | 100 - rarr_unit_3 |
