pcclca3/0-56-x
PANDUIT LCA3/0-56-X 1HOLE LUG 3/0 AWG
pcclca3/0-56-x
PANDUIT LCA3/0-56-X 1HOLE LUG 3/0 AWG
Manufacturer:PANDUIT
Manufacturer #:LCA3/0-56-X
Description

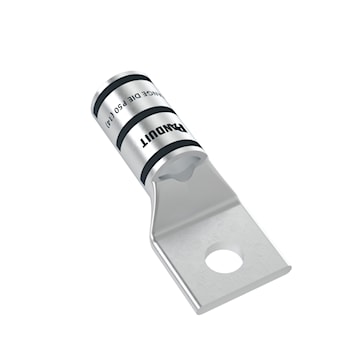

The LCA3/0-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |
| Type | Preterminated Copper Trunk, Category 6 | Number of Holes | 1 |
| Stud Size | 5/16 in | Barrel Length | 1.14 in |
| Overall Length | 2.27 in | Material | Copper |
| Barrel Type | Standard | Tongue Type | Standard |
| Standards | C22.2 No. 65-13 | UPC | 074983901180 |
Packages
| 1 - rarr_unit_1 | 10 - rarr_unit_2 | 100 - rarr_unit_3 |
