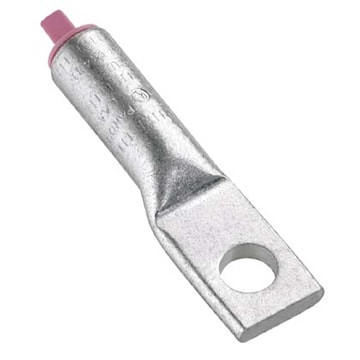

PANDUIT LAA250-12-5 Pan-Lug™ Compression Lug 1 Holes Aluminum 0.5 in Stud size

Manufacturer:PANDUIT
Manufacturer #:LAA250-12-5
Documents Documents

Description

Aluminium lug, one-hole for use with stranded aluminium or copper code conductors. Manufactured from high conductivity thick wall wrought aluminium. Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion. Colour-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection. Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments. Tin-plated to inhibit corrosion. Temperature rated to 90°C.

Specifications

Brand Name Panduit Sub Brand Pan-Lug™
Item Name Compression Lug Type Type LAA
Number of Holes 1 Stud Size 0.5 in
Barrel Length 1.63 in Overall Length 3.67 in
Color Code Red Material Aluminum
Voltage Rating 35000 V Barrel Type Long
Tongue Type Standard Finish Tin Plated
UPC 074983910465
