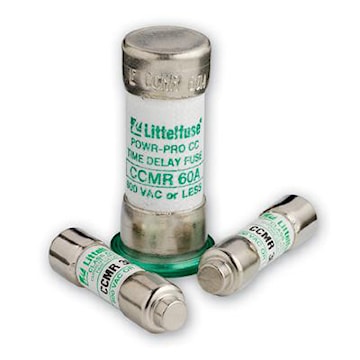

FUSETEK CCMR-25 Powr-Gard® Fuse Class CC, Time-Delay Class CC 25 A, 600 VAC, 500 VDC
fusccmr25
FUSETEK CCMR-25 Powr-Gard® Fuse Class CC, Time-Delay Class CC 25 A, 600 VAC, 500 VDC
Manufacturer:FUSETEK
Manufacturer #:CCMR-25
Description
The CCMR series is ideal for space saving protection of motors up to 40 hp*. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL Listed fuses, Class CC fuses are the most current-limiting, rating for rating.
Specifications
| Brand Name | Fusetek | Sub Brand | Powr-Gard® |
| Item Name | Fuse | Type | Class CC, Time-Delay |
| Series | CCMR | Voltage Rating | 600 VAC, 500 VDC |
| Amperage Rating | 25 A | Interrupt Rating | 200000 A |
| Fuse Class | Class CC | Element Type | Dual |
| Dimensions | 1.5 in L x 0.41 in W | Standards | UL Listed, CSA Certified, RoHS Compliant |
| Application | For Motor Protection, Small Transformer Protection, General Purpose Protection of Equipment Requiring Fast Overload Protection |
