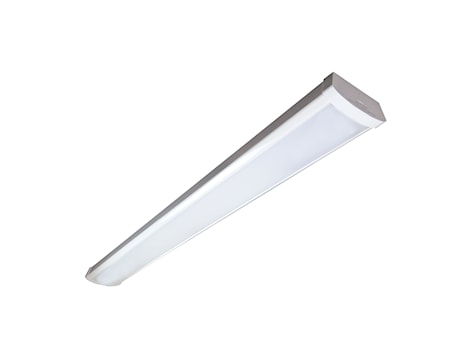

RAB DESIGN 081287 4' WRAP CCT UNV 46W DIM

Manufacturer:RAB DESIGN
Manufacturer #:081287
Documents Documents

Description

The SMW2N-LED and SMW4N-LED Surface Mount Wraps are 2' and 4' linkable linear fixtures for indoor use. This wraparound luminaire is easy to install and features a link connector for combining multiple fixtures in a row.

Specifications

Brand Name Rab Design Lighting Item Name LED Wraparound Fixture
Type Dimmable Voltage Rating 120 - 347 V
Fixture Wattage 46.27 W Housing Finish White
Lighting Technology LED Light Output 125.4 lm/W
Average Life 54000 hr Color Temperature 3500/4000/5000 K
Color Rendering Index (CRI) 85.2 Lens Type Frosted Polycarbonate
Lumens 5801 lm Mounting Type Surface
Housing Material Steel Dimensions 48 in L x 5.3 in W x 2.1 in H
Application For Stairwells, Hallways, Foyers, Utility Areas UPC 061184812872
