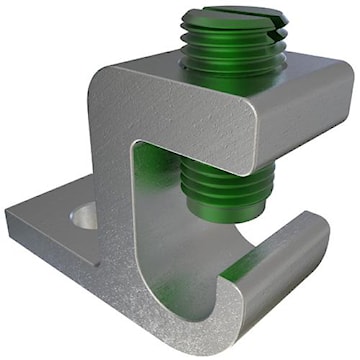

ILSCO GBL-1/0 ClearChoice Mechanical Ground Lug Dual Rated, Lay-In 1/0 AWG Stranded - 14 AWG Solid Copper or Aluminum Conductor
ilsgbl1/0
ILSCO GBL-1/0 ClearChoice Mechanical Ground Lug Dual Rated, Lay-In 1/0 AWG Stranded - 14 AWG Solid Copper or Aluminum Conductor
Manufacturer:ILSCO
Manufacturer #:GBL-1/0
Description
Dual rated lay-in ground lug manufactured from high strength 6061-T6 aluminum alloy. Suitable for use with either copper or aluminum conductors. Provides low contact resistance, ease of installation. Ensures reliability.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Ground Lug | Type | Dual Rated, Lay-In |
| Conductor Type | Solid/Stranded | Conductor Size | 1/0 AWG Stranded - 14 AWG Solid |
| Stud Size | 1/4 in | Material | High Strength 6061-T6 Aluminum |
| Series/Model | GBL | Conductor Material | Copper or Aluminum |
| Tongue Size | 27/32 in L x 5/8 in W | Dimensions | 1-5/8 in L x 5/8 in W x 1-5/32 in H |
| Connector Type | Clamp Screw | Number of Mounting Holes | 1 |
| Mounting Hole Size | 9/32 in | Finish | Electro-Tin Plated |
| Standards | UL 467, UL File Number E34440, RoHS Compliant | Application | Lay-in Ground Lug |
| UPC | 783669960105 |
Packages
| 1 - rarr_unit_1 | 50 - rarr_unit_2 |
