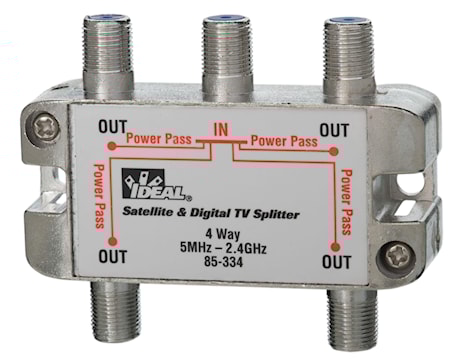

IDEAL INDUSTRIES 85-334 Splitter 4-Way, High Performance, Female

Manufacturer:IDEAL INDUSTRIES
Manufacturer #:85-334

Description

Satellite and digital TV splitter is designed for easy mounting over cable. All ports are F female connectors. Two grounding screws eliminate the need for grounding block. Includes two mounting screws (Phillips/slotted head).

Specifications

Brand Name Ideal Item Name Splitter
Type 4-Way, High Performance, Female Cable Type Coaxial
Connection Type F-Bus Impedance 75 O
Frequency Range 5 MHz - 2.4 GHz Insertion Loss 8 - 12 dB
Dimensions 2-1/4 in L x 3-1/2 in W x 1 in D x 2 in H Includes (2) Mounting Screws (Phillips/Slotted Head)
Standards RoHS Compliant Application Use in High-Definition Applications such as Satellite, Digital/HD Cable TV, Broadcast (over the Air) TV, CCTV and General Purpose Coaxial Splitting Applications
UPC 783250853342
