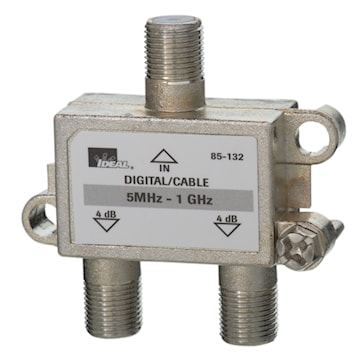

IDEAL INDUSTRIES 85-132 Splitter 2-Way, High Performance, Female, Twist-On
idi85132
IDEAL INDUSTRIES 85-132 Splitter 2-Way, High Performance, Female, Twist-On
Manufacturer:IDEAL INDUSTRIES
Manufacturer #:85-132
Description
High performance 2-way cable splitter with 5MHz to 1GHz frequency. Designed for easy mounting over cable. All ports are F female connectors with 75O impedance. Two grounding screws eliminate the need for grounding block. Single port power pass.
Specifications
| Brand Name | Ideal | Item Name | Splitter |
| Type | 2-Way, High Performance, Female, Twist-On | Cable Type | Coaxial |
| Connection Type | F-Bus | Impedance | 75 O |
| Frequency Range | 5 MHz - 1 GHz | Insertion Loss | 3.5 - 4 dB |
| Dimensions | 2 in L x 2 in W x 3/4 in D x 2 in H | Includes | (2) Mounting Screws (Phillips/Slotted Head) |
| Standards | RoHS Compliant | Application | Use in Digital/HD Cable TV, Broadcast (over the Air) TV, CCTV and General Purpose Coaxial Splitting Applications |
| UPC | 783250851324 |
Packages
| 1 - rarr_unit_1 | ea - ea | 5 - rarr_unit_2 |
