EATON XBUT4PE Terminal Block 0.14 mm², 0.2 - 4 mm²
cuhxbut4pe
EATON XBUT4PE Terminal Block 0.14 mm², 0.2 - 4 mm²
Manufacturer:EATON
Manufacturer #:XBUT4PE
Description

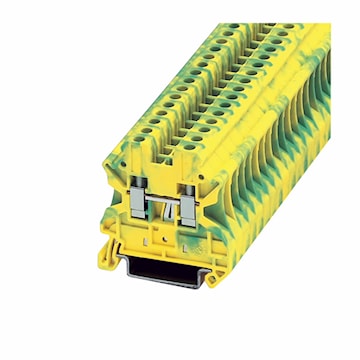

The ground terminal blocks have the same shape and pitch as the standard terminal block, in a green-yellow housing. They easily snap onto the DIN rail to make a reliable mechanical and electrical contact that meets all requirements of IEC 60-947-7-2.
Specifications
| Brand Name | Eaton | Item Name | Terminal Block |
| Type | Ground | Conductor Size | 0.14 mm², 0.2 - 4 mm² |
| Mounting Type | 35 mm DIN Rail | Series | IEC-XB |
| Spacing | 6.2 mm | Connection Type | Screw |
| Color | Green/Yellow | Dimensions | 47.5 mm H |
| Standards | CSA Certified, UL Listed | Application | Wiring Management and Devices |
| UPC | 782116904938 |
