intff12h

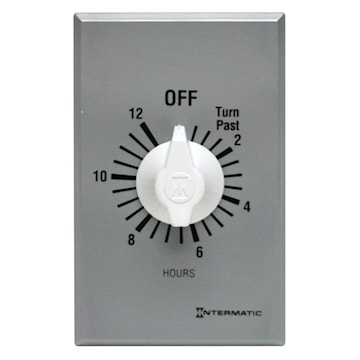

INTERMATIC FF12HC Analog Timer Mechanical, Commercial Spring Wound Auto-Off 12 hr SPST - 1 NO Natural
intff12h
INTERMATIC FF12HC Analog Timer Mechanical, Commercial Spring Wound Auto-Off 12 hr SPST - 1 NO Natural
Manufacturer:INTERMATIC
Manufacturer #:FF12HC
Description
FF Series commercial auto-off timer is designed to replace any standard wall switch - single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. Rugged time dial plate easily withstands the abuse encountered in commercial environments. Commercial “brushed metal” (plastic construction) look meets NEC requirements. Time saving up front terminal connection with teeter-type terminals. Press-on knob design ensures quick and easy installation. CFL compatible.
12-Hour timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Brushed metal look switch plate meets NEC requirements (plate is included)
Incandescent/fluorescent/CFL/LED compatible
Specifications
| Brand Name | Intermatic | Type | Commercial Spring Wound Auto-Off |
| Timing Range | 12 h | Contact Configuration | 1 NO |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) | Amperage Rating | 15 A |
| Frequency Rating | 50/60 HZ | Number of Poles | 1 |
| Mounting | Wall Mount | Standards | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC |
| Application | Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control | UPC | 078275005259 |
