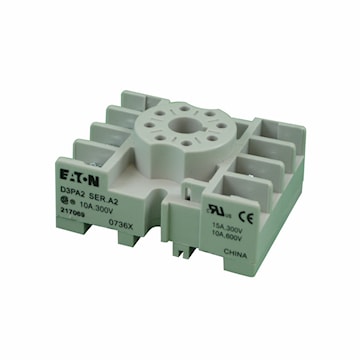

EATON D3PA2 Relay Socket General Purpose, Octal 8 Pins Screw Clamp Terminal 300/600 V
cuhd3pa2
EATON D3PA2 Relay Socket General Purpose, Octal 8 Pins Screw Clamp Terminal 300/600 V
Manufacturer:EATON
Manufacturer #:D3PA2
Description
D3 Series Socket, Used with D3PR2 and D3PF2 Relays, TRNP Timing Relays, TMR5 and TRM6 Time Delay Relays, DIN rail/panel mount, Screw clamping wire connection, QTY: 10, 8 pins
Specifications
| Brand Name | Eaton | Item Name | Relay Socket |
| Type | General Purpose, Octal | Voltage Rating | 300/600 V |
| Amperage Rating | 10/15 A | Number of Pins | 8 |
| Series | D3 | Conductor Size | (2) 12/14 AWG |
| Mounting Type | DIN Rail/Panel, Screw | Terminal Type | Screw Clamp |
| Enclosure Type | IP20 | Dimensions | 2 in L x 1.6 in W x 0.8 in H |
| For Use With | D3PR2, D3PF2 Plug-In Relays, TMR5, TRM6, TRNP Time Delay Relays | Standards | cRUus, UL Listed, CSA Certified, RoHS Compliant, CE Marked |
| Application | For Commercial, Institutional Buildings and Structures | UPC | 782114159767 |
