cuhxtob125gc1

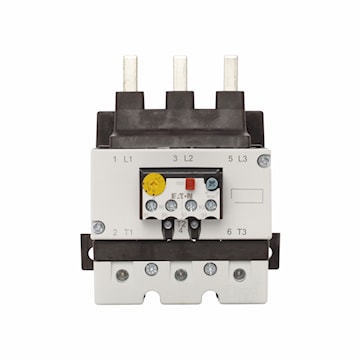

EATON XTOB125GC1 None IEC Overload Relay Bimetallic 1 NO, 1 NC 95 - 125 A,
cuhxtob125gc1
EATON XTOB125GC1 None IEC Overload Relay Bimetallic 1 NO, 1 NC 95 - 125 A,
Manufacturer:EATON
Manufacturer #:XTOB125GC1
Description
Eaton XT IEC bimetallic overload relay, 95-125A overload range, 90 mm Frame size, 1NO-1NC contact configuration, Direct to contactor mounting, used with 80-170A contactor, 10A trip type
Specifications
| Brand Name | Cutler Hammer | Sub Brand | None |
| Item Name | IEC Overload Relay | Type | Bimetallic |
| Class | Class 10A | Contact Configuration | 1 NO, 1 NC |
| Number of Poles | 3 | Series/Model | XTOB |
| Amperage Rating | 95 - 125 A | Frame Size | G, 90 mm |
| Dimensions | 4.65 in W x 5.42 in D x 5.26 in H | Mounting | Direct |
| Temperature Rating | -13 to 131 °F | For Use With | 80 - 170 A Contactors |
| Standards | ATEX, RoHS Compliant, CE Marked, UL Listed, CSA Certified, IEC 60947, EN 60947 | Application | For Motor and Power Control Equipment |
| UPC | 015082784656 |
