cuhxtob050gc1

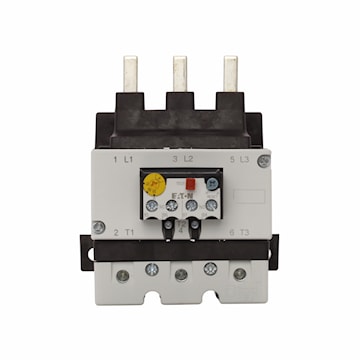

EATON XTOB050GC1 None IEC Overload Relay Bimetallic 1 NO, 1 NC 35 - 50 A,
cuhxtob050gc1
EATON XTOB050GC1 None IEC Overload Relay Bimetallic 1 NO, 1 NC 35 - 50 A,
Manufacturer:EATON
Manufacturer #:XTOB050GC1
Description
Eaton XT IEC bimetallic overload relay, G-frame, 1NO-1NC contacts, 35-50A overload, Direct mount
Specifications
| Brand Name | Cutler Hammer | Sub Brand | None |
| Item Name | IEC Overload Relay | Type | Bimetallic |
| Class | Class 10 | Contact Configuration | 1 NO, 1 NC |
| Number of Poles | 3 | Series/Model | XTOB |
| Amperage Rating | 35 - 50 A | Frame Size | G |
| Dimensions | 5.28 in L x 4.65 in W x 5.43 in H | Mounting | Direct |
| Temperature Rating | -13 to 131 °F | For Use With | 115 - 170 A Contactors |
| Standards | UL Listed, CSA Certified | Application | For Motor and Power Control Equipment |
| UPC | 015082784625 |
