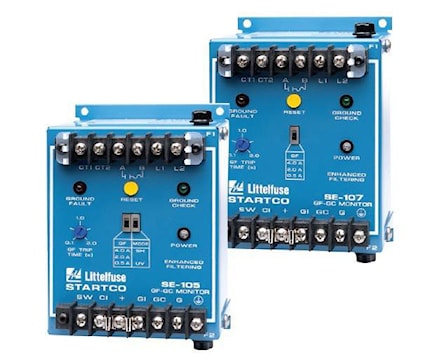

LITTELFUSE SE-105 Ground Fault Check Monitor 120 VAC
lfsse105
LITTELFUSE SE-105 Ground Fault Check Monitor 120 VAC
Manufacturer:LITTELFUSE
Manufacturer #:SE-105
Description
The SE-105 is a combination ground-wire monitor and ground-fault relay for resistance-grounded systems. It continuously monitors the integrity of the ground conductor to protect portable equipment from hazardous voltages caused by ground faults. The SE-105 is an excellent choice for trailing cables 5 kV and under in underground mining applications.
Specifications
| Brand Name | Littelfuse | Item Name | Ground Fault Check Monitor |
| Voltage Rating | 120 V | Type | Fail-Safe/Non Fail-Safe |
| Frequency Range | 25 - 110 Hz | Indicator Type | LED |
| Reset Type | Button | Dimensions | 4.3 in W x 3.9 in D x 5.9 in H |
| Mounting | Surface | Temperature Rating | -40 °C to 60 °C |
| Standards | CSA Certified, UL Listed |
Packages
| 1 - rarr_unit_1 | 16 - rarr_unit_2 |
