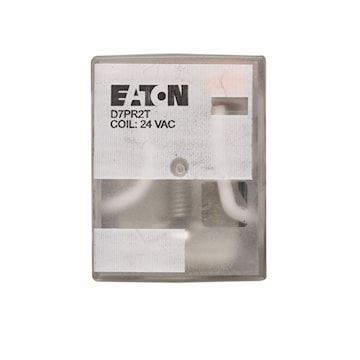

EATON D7PR2T General Purpose Relay 300 V, DIN Rail/Panel/Flange Mount
cuhd7pr2t
EATON D7PR2T General Purpose Relay 300 V, DIN Rail/Panel/Flange Mount
Manufacturer:EATON
Manufacturer #:D7PR2T
Description
General Purpose Plug-In Relay, D7PR, Standard relay, 24 VAC, DPDT, 180 ohms
Specifications
| Brand Name | Eaton | Item Name | General Purpose Relay |
| Type | Ice Cube, Plain Cover | Voltage Rating | 300 V |
| Coil Rating | 24 VAC | Contact Rating | 15 A |
| Contact Configuration | DPDT | Number of Poles | 2 |
| Terminal Connection | Plug-in | Series/Model | D7PR |
| Amperage Rating | 15 A at 120 VAC, 12 A at 277 VAC/28 VDC | Frequency Rating | 50/60 Hz |
| HP Rating | 1/2 hp at 120 VAC, 1 hp at 250 VAC | Power Rating | 0.9 W |
| Contact Material | Silver Alloy | Dielectric Strength | 2500 VAC Between Coil and Contact, 1500 VAC Between Poles |
| Resistance | 180 O | Operating Cycles | 10000000 Mechanical, 200000 Electrical |
| Operate Time | 20 Millisecond | Indicator Type | Mechanical Flag |
| Dimensions | 1.54 in L x 0.83 in W x 1.1 in H | Material | Polycarbonate |
| Mounting Type | DIN Rail/Panel/Flange | Degree of Protection | IP40 |
| Temperature Rating | -40 to 131 °F | Environmental Conditions | -40 to 185 °F Storage |
| Standards | UL E37317, E65657, CSA LR217069, LR217017, cRUus, RoHS Compliant, CE | Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| UPC | 782114160527 |
