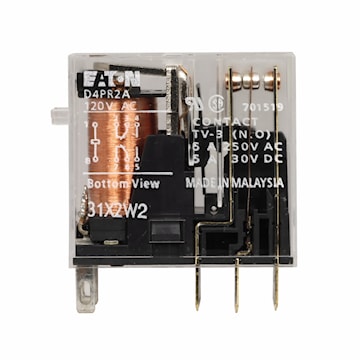

EATON D4PR2A RELAY, DPDT, AC
cuhd4pr2a
EATON D4PR2A RELAY, DPDT, AC
Manufacturer:EATON
Manufacturer #:D4PR2A
Description
Eaton General-purpose relay, D4 Series, QTY: 1, DPDT contact configuration, 120V coil, 5 A, 240 Vac/30 Vdc resistive load, 2 A, 250 Vac/3A, 30 Vdc inductive full load, 380 Vac/125 Vdc max. operating voltage
Specifications
| Brand Name | Eaton | Type | Ice Cube, Plain Cover |
| Contact Configuration | DPDT | Amperage Rating | 5 A |
| Dimensions | 1.1400 IN X 0.5100 IN X 0.5000 IN | Standards | CSA file No. LR701519,cRUus,UL Listed file E65657,UL Listed file E1491,CE Marked,RoHS Compliant |
| Application | Electrical Assemblies, Panels and EOEMs | UPC | 782114160640 |
