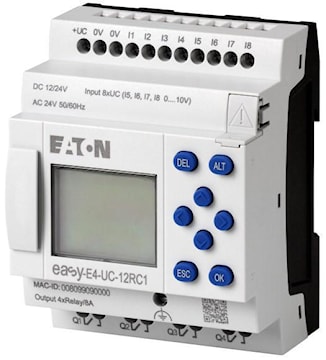

EATON EASY-E4-UC-12RC1 Control Relay Expandable 24 VAC, 12/24 VDC, 12 Inputs 4 Outputs
cuheasy-e4-uc-12rc1
EATON EASY-E4-UC-12RC1 Control Relay Expandable 24 VAC, 12/24 VDC, 12 Inputs 4 Outputs
Manufacturer:EATON
Manufacturer #:EASY-E4-UC-12RC1
Description
Eaton Easy Nano Programmable Logic Controller, Easy E4 Nano PLC with AC Power supply, Basis device 12/24 V DC,24 V AC, Display, Keypad, Screw Terminal
Specifications
| Brand Name | Eaton | Item Name | Control Relay |
| Type | Expandable | Supply Voltage | 24 VAC, 12/24 VDC |
| Number of Inputs | 12 | Number of Outputs | 4 |
| Input Type | Analog, Digital | Output Type | Digital |
| Amperage Rating | 8 A | Display | LCD |
| Mounting | Wall/Direct/Rail | Temperature Rating | -25 to 55 °C |
| Dimensions | 71.5 mm W x 58 mm D x 90 mm H | Includes | Timer |
| Standards | CE Certified, cULus Listed, DNV GL, UL NRAQ/7, E205091, IEC/EN 61439, IEC 60068-2-1, IEC 60068-2-2, EN 61000-6-2, EN 61000-6-3, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-30, IEC 61131-2, EN 61010, EN 50178 | UPC | 015081939484 |
