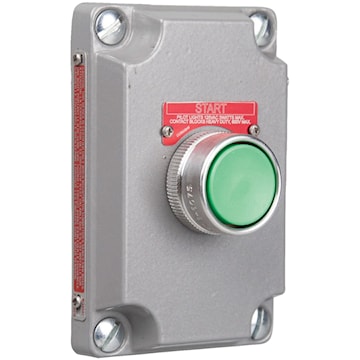

HUBBELL CANADA ULC XCS-0B3 EXPRF 1BTN PB STATION
kilxcs0b3
HUBBELL CANADA ULC XCS-0B3 EXPRF 1BTN PB STATION
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:XCS-0B3
Description
Covers are cast copper-free aluminum alloy. Push button operator bodies are copper-free aluminum. Operating shaft in push buttons is stainless steel. Standard size push buttons have 1-3/8" overall diameter. Contact blocks are rated heavy duty, 600 VAC max
Copper free cast aluminum alloy.
Ground flange joint between bolted cover and box provide required flame path.
Push button, selector switches and pilot light operator bodies are copper-free aluminum.
Operating shaft in both push buttons and selector switches are stainless steel.
Specifications
| Brand Name | Killark | Item Name | Non-Illuminated Push Button |
| Type | Single, 1-Pole | Action | Momentary |
| Contact Configuration | 1 NO/1 NC | Contact Rating | 60 A Inrush at 120 VAC, 30 A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120 VAC, 10 A Carrying at 240 VAC, 10 A Carrying at 480 VAC |
| Lamp Voltage | 600 VAC | Dimensions | 1-1/16 in dia x 4-5/8 in H x 3 in W |
| Color | Black | Series/Model | XCS |
| Amperage Rating | 275/550 mA/2.5 A | Head Material | Aluminum |
| Standards | UL Listed, CSA Certified | Application | Hazardous Locations Due to the Presence of Flammable Gases or Vapors, Combustible Dusts, or Easily Ignitable Fiber or Flyings, Installations at Petroleum Refineries, Chemical and Petrochemical Plants and other Processing or Storage Facilities |
| UPC | 783936890074 |
