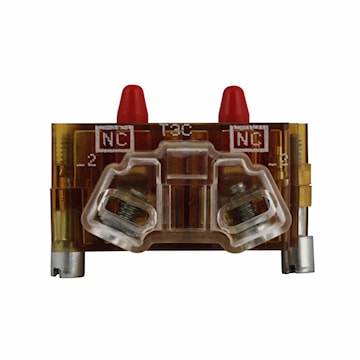

EATON 10250T3 Contact Block 2 NC 30 mm Size Pressure Terminal

Manufacturer:EATON
Manufacturer #:10250T3

Description

Stack up to six blocks (12 circuits) unless otherwise noted. For use with 30.5 mm heavy-duty watertight/oiltight 10250T pushbuttons.

Specifications

Brand Name Eaton Item Name Contact Block
Type Standard, Heavy Duty Voltage Rating 660 VAC/VDC
Contact Configuration 2 NC Contact Rating 10 A at 660 VAC/VDC
Series 10250T Size 30 mm
NEMA Rating NEMA A600/P600 Terminal Type Pressure
Color Gray Dimensions 1.3 in L x 1.3 in W x 2.3 in H
For Use With Eaton 10250T 30 mm Push Buttons and Indicating Lights Standards CSA, CE Certified, UL Listed
UPC 782113203430
